GROUND FORCE WATER SOLUTIONS

RIGID FRAME

9,000 – 62,000 gallons (34,068 – 234,695 liters)



Ground Force Articulated Water Trucks are designed to be work-ready and easy to operate. Whether you need one, or are outfitting a whole rental fleet, they will tackle all your dust suppression, fire-fighting, and general water truck needs.

Ground Force Rigid Frame Water Trucks are custom-engineered for the unique demands of mining, delivering the exact amount of water you need—safely, efficiently, and reliably. From dust suppression to firefighting and site support, these trucks are built to carry massive volumes and keep the largest operations running smoothly.

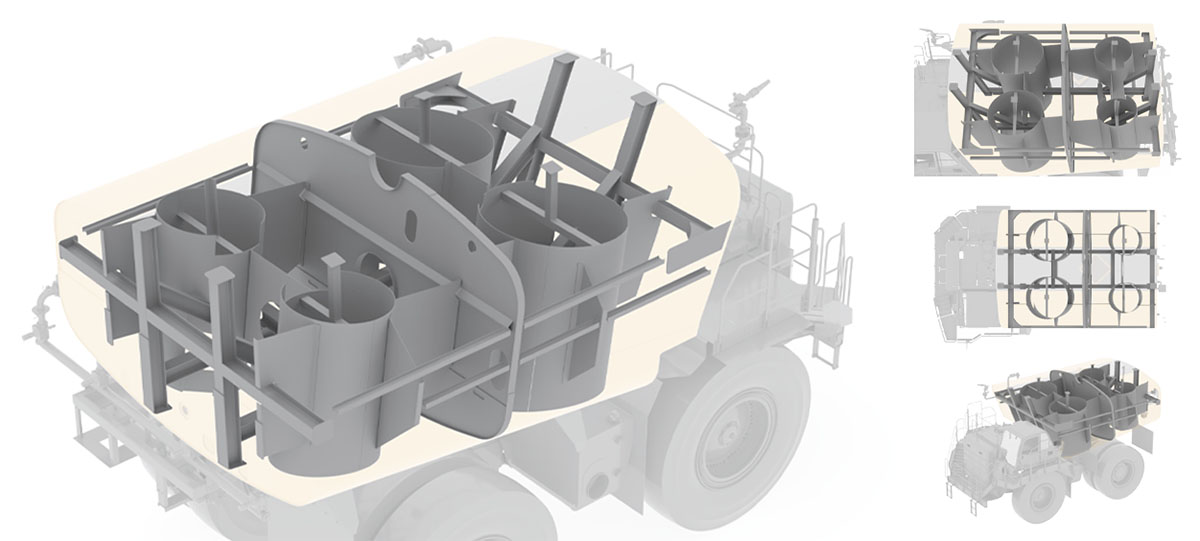

At the core of each tank is a reinforced endoskeleton and dual-radius elliptical design that lowers the center of gravity, enhances stability, and ensures long-term durability in the harshest environments. Full transverse and longitudinal baffling reduces water surge and inertial shift, giving operators greater control and reducing stress on the chassis. Every truck also comes standard with the Ground Force Water Control System (WCS), offering intuitive in-cab controls, programmable spray presets, and ground speed optimized control for precision water distribution.

GROUND FORCE RIGID FRAME WATER TRUCKS

WHEN SIZE MATERS,
OUR SUPER TANKERS DELIVER.

From a single 9,000-gallon unit to a 62,000-gallon super tanker, Ground Force rigid frame water trucks are spec’d to your operation, not the other way around. Connect with a product specialist about the right configuration for your operation.

STANDARD FEATURES

  • Water Capacity: 9,000 – 62,000 gal (34,068 – 243,695 L)
  • Built for heavy-duty mining applications
  • Dual-radius elliptical design
  • Endo-skeleton, designed with structural I-beams for extended life and stability
  • Full baffled; longitudinal and transverse
  • Sump with drain for cleanout
  • Sealed weatherproof wiring
  • LED tail, stop and turn lights

AVAILABLE MODELS



MODEL CLASS CAPACITY
GALLONS		 CAPACITY
LITERS
9W 40 T (36 mt) 9,000 G 34,068 L
10W 50 T (45 mt) 10,000 G 37,854 L
12W / 13W 60 T (54 mt) 12,000 – 13,000 G 45,424 – 49,210 L
15W 70 T (63 mt) 15,000 G 56,781 L
18W / 20W 100 T (90 mt) 18,000 – 20,000 G 68,137 – 75,708 L
25W / 32W 150 T (136 mt) 25,000 – 32,000 G 94,635 L – 121,133 L
35W / 40W 200 T (181 mt) 35,000 – 40,000 G 132,489 – 151,416 L
45W / 52W 240 T (217 mt) 45,000 – 52,000 G 170,343 – 196,841 L
60W / 62W 400 T (363 mt) 60,000 – 62,000 G 227,124 – 234,695 L
