WHEN RELIABILITY MATTERS – OUR SUPER TANKERS DELIVER
RIGID FRAME WATER TRUCKS
WATER CAPACITIES
9,000 – 60,000 gallons (34,068 – 227,124 liters)
Media Gallery
Body Features
Available Rigid Frame Water Tanks Models
| CLASS | CAPACITY | MODEL |
|---|---|---|
| 40 T (36 mt) | 9,000 G (34,068 L) | 9W |
| 50 T (45 mt) | 10,000 G (37,854 L) | 10W |
| 60 T (54 mt) | 12,000 – 13,000 G (45,424 – 49,210 L) | 12W / 13W |
| 70 T (63 mt) | 15,000 G (56,781 L) | 15W |
| 100 T (90 mt) | 18,000 – 20,000 G (68,137 – 75,708 L) | 18W / 20W |
| 150 T (136 mt) | 25,000 – 32,000 G (94,635 L – 121,133 L) | 25W / 32W |
| 200 T (181 mt) | 35,000 – 40,000 G (132,489 – 151,416 L) | 35W / 40W |
| 240 T (217 mt) | 45,000 – 52,000 G (170,343 – 196,841 L) | 45W / 52W |
| 400 T (363 mt) | 60,000 G (227,124 L) | 60W |
Designs for all chassis on the market today
Premium Specifications is our Standard Build!
Ground Force Worldwide Rigid Frame Water Trucks offers a variety of special features, many of which come standard with your truck. Capacities may vary depending on chassis size and weight distribution.
TANK SPECIFICATIONS
- Water capacity: 9,000 to 60,000 gal. (34,068 L – 227,124 L)
- Built for heavy-duty mining applications
- Dual-radius elliptical design
- Endo-skeleton, designed with structural I-beams for extended life and stability
- Full baffled; longitudinal and transverse
- Custom engineered tub-surge control system
- Sump with drain for cleanout
- Sealed weatherproof wiring
- LED tail, stop and turn lights
OPERATOR EASE & SAFETY
- Ground Force Water Control System (WCS)
- Designed to achieve lowest center of gravity
- Banded manway with safety grate
- Ladder with safety handrails
- Anti-skid top walkway with PPE tie-off
- Ground Force Field Service available
WHAT OUR CAPABILITIES MEAN FOR YOU.

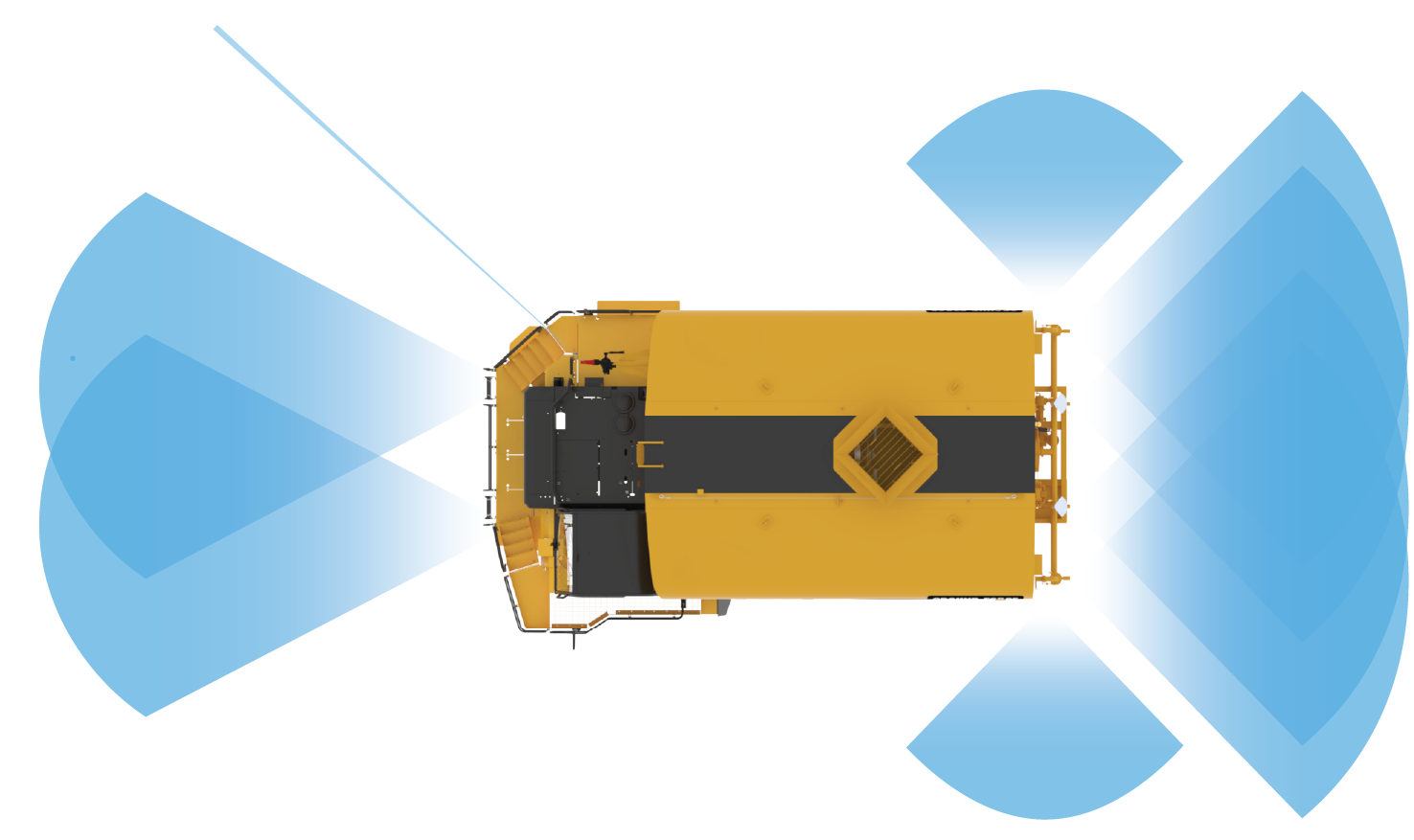

Ground Force Water trucks offer multiple spray configurations with adjustable spray heads to allow water volume and direction control. This helps achieve optimal spray levels for dust suppression while being sensitive to water conservation.
- FRONT FAN SPRAY HEADS: These spray heads adjust for water volume and side to side rotation. They spray up to 70 ft in width (21.3 m) and reach distances of 60 ft in front (18.3 m).
- WATER CANNON: Allows for rotation of 350° side to side and 140° vertical by way of in-cab controls or wireless remote. The water cannon offers a variety of spray settings for close-up stockpile watering or firefighting at distances reaching up to 220 ft (67 m).
- SIDE SPRAY NOZZLES: Side sprays have a 2-way adjustment to control spray height and direction. Side spray nozzles reach up to 36 ft wide from each side of the tank (11 m).
- REAR FAN SPRAY HEADS: These spray heads adjust for water volume and side to side rotation and spray up to 90 ft in width (27 m).
- GRAVITY DUMP options allow for pressurized or non-pressurized options via dump valve or gravity dump bar.
*Above measurements require the Ground Force B4 Water Pump.
The Engineering of our Water Tanks is Unique & Unrivaled.
When it comes to water delivery, Ground Force Worldwide offers the most innovative solutions on the market. Ground Force Worldwide Rigid Frame Water Trucks are custom engineered to ensure your water truck delivers the exact amount of water you need — efficiently, and safely. It will tackle all your dust suppression, fire-fighting, and general water truck needs and is designed to last for longevity.
Our water tanks are engineered with an internal endoskeleton and dual-radius semi-elliptical shape. This design allows for an optimal center of gravity while providing the strength needed for your water tank to last in tough conditions. Our water tanks are fully baffled to break up water flow for increased safety and stability. This combined with high-quality materials and advanced manufacturing ensures your Ground Force Worldwide tank is a valuable asset!
Ground Force Water Trucks are engineered with operator safety and efficiency in mind, with clear and simple in-cab digital controls, strategic placement of critical components, and wireless remote operation if desired along with numerous other features.
Ground Force Water Control System
- Externally mounted, high performance water pump
- Digital in-cab control monitor
- Programmable menu with (4) preset spray settings
- Intermittent spray settings for wet-strip, dry-strip watering
- On-the-fly, one-touch control for change of individual spray heads
- Backlit LCD screen for low-light operations
- Integration of an extensive range of options
- Rear spray bar with (4) staggered fan-sprays
- Side sprays, hose reels, water cannons, & gravity dump
- Heated component enclosure available for arctic applications
- Optional fire foam system
DESIGNED FOR INTERCHANGEABILITY WITH GROUND FORCE WATER & ROCK SPREADER TRUCKS
All Ground Force Water Trucks come equipped with easy in-cab controls allowing precise delivery of water at the touch of your fingertips. With a programmable display, setting up for your operators is a cinch. This innovative technology allows for easy change-over to your Ground Force Rock Spreader body, as the system is interchangeable with the Ground Force Water body as a plug and play feature.
