Water Solutions
Built for the Weight of Mining
Dust control, road management, water distribution, and site support are the difference between peak productivity and wasted shifts. Ground Force water solutions are purpose-built for the full weight of high-production mining and heavy construction applications: extreme duty cycles, variable terrain, and capacity requirements that reach up to 62,000 gallons (234,695 L). Four decades of field experience across demanding climates and site conditions are engineered into every tank.
9,000-62,000 GALLONS
(34,086 – 234,695 LITERS)
Ground Force Rigid Frame Water Trucks are designed to be work-ready and easy to operate. Whether you need one, or are outfitting a whole rental fleet, they will tackle all your dust suppression, fire-fighting, and general water truck needs.
5,000-9,500 GALLONS
(18,927 – 35,96 LITERS)
Engineered with a dual-radius semi-elliptical shape, Ground Force’s articulated water truck design allows for an optimal center of gravity while providing the strength needed for your water tank to last in tough conditions. Fully baffled tanks break up water flow for increased safety and operator stability.
5,000-12,000 GALLONS
(18,927 – 45,424 LITERS)
Engineered to utilize CAT Wheel Tractor Scrapers (or similar), low-profile Water Pull tanks are designed with the same quality and innovation as all Ground Force water tanks but offer large volumes of water in a specialty application.

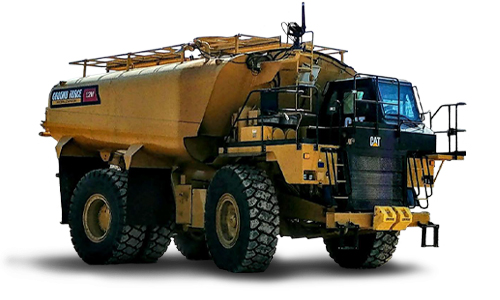

9,000-62,000 GALLONS
(34,086 – 234,695 LITERS)
When your operation demands maximum water capacity, Ground Force delivers. Our Rigid Frame Water Trucks are engineered for the full range of mining applications — from dust suppression on high-production haul roads to emergency firefighting — with capacities from 9,000 to 62,000 gallons.
Baffled Surge
Protection
Transverse and longitudinal baffles neutralize inertial surges, reducing load shift during driving, turning, and reversing so your operator stays in control and your chassis stays protected.
Semi-Elliptical
Design
Ground Force’s dual-radius semi-elliptical tank profile lowers the center of gravity and distributes load evenly across the chassis, maximizing structural strength and vehicle stability at any capacity, on any grade.
GROUND FORCE
WCS
The Ground Force Water Control System (WCS) is standard across all water solutions. Clear in-cab digital controls, optimized component placement, and available wireless remote operation reduce operator effort and improve on-site responsiveness.
AVAILABLE MODELS
| MODEL | CLASS | CAPACITY GALLONS |
CAPACITY LITERS |
|---|---|---|---|
| 9W | 40 T (36 mt) | 9,000 G | 34,068 L |
| 10W | 50 T (45 mt) | 10,000 G | 37,854 L |
| 12W / 13W | 60 T (54 mt) | 12,000 – 13,000 G | 45,424 – 49,210 L |
| 15W | 70 T (63 mt) | 15,000 G | 56,781 L |
| 18W / 20W | 100 T (90 mt) | 18,000 – 20,000 G | 68,137 – 75,708 L |
| 25W / 32W | 150 T (136 mt) | 25,000 – 32,000 G | 94,635 L – 121,133 L |
| 35W / 40W | 200 T (181 mt) | 35,000 – 40,000 G | 132,489 – 151,416 L |
| 45W / 52W | 240 T (217 mt) | 45,000 – 52,000 G | 170,343 – 196,841 L |
| 60W / 62W | 400 T (363 mt) | 60,000 – 62,000 G | 227,124 – 234,695 L |
GROUND FORCE RIGID FRAME WATER TRUCKS
WHEN SIZE MATERS,
OUR SUPER TANKERS DELIVER.
From a single 9,000-gallon unit to a 62,000-gallon super tanker, Ground Force rigid frame water trucks are spec’d to your operation, not the other way around. Connect with a product specialist about the right configuration for your operation.

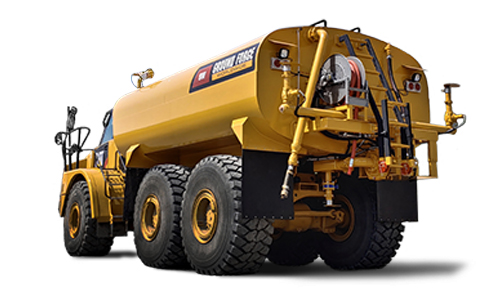

5,000-9,500 GALLONS
(18,927 – 35,961 LITERS)
Where terrain is uneven and space is tight, articulated water trucks earn their place. Ground Force articulated water trucks are purpose-built for the access challenges of complex sites — delivering dust suppression, firefighting, and general water needs in a nimble, durable configuration.
Agile
& Dependable
Articulated chassis navigates confined and uneven terrain other chassis can’t access, keeping dust suppression, firefighting, and water delivery consistent across your entire site, not just the easy routes.
Surge
Protection
Transverse and longitudinal baffles neutralize load shift across uneven terrain and rugged haul roads, keeping the Ground Force articulated trucks stable and in control whether the tank is full, partial, or running on the return.
Cold Weather
Drill Service
Ground Force articulated water trucks are built to perform through extreme conditions and seasonal temperatures. Cold-weather configurations keep critical systems operational through the toughest winter conditions.
AVAILABLE MODELS
| MODEL | CLASS | CAPACITY GALLONS |
CAPACITY LITERS |
|---|---|---|---|
| 5W | 25 T (23.6 mt) | 5,000 G | 18,927 L |
| 6W | 30 T (28.1 mt) | 6,000 G | 37,854 L |
| 7W | 36 T (32.7 mt) | 7,000 G | 26,497 L |
| 8W | 40 – 43 T (39.5 mt) | 8,000 G | 30,283 L |
| 9W | 45 T (41 mt) | 9,000 G | 34,068 L |
| 9.5W | 45 T (41 mt) | 9,500 G | 35,961 L |
Ground Force articulated water trucks
Tight access. No compromises on water delivery.
Ground Force articulated water trucks are engineered with your operation and operators in mind. Available in capacities from 5,000 to 9,500 gallons with full baffling, semi-elliptical tank design, and WCS controls standard.

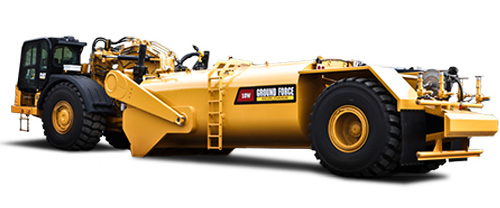

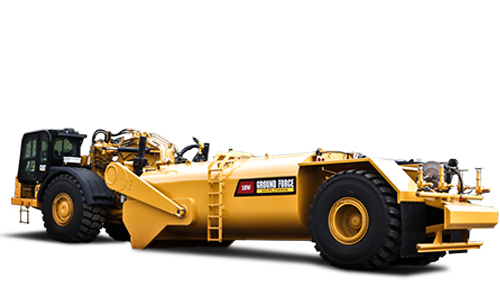

5,000-12,000 GALLONS
(18,927 – 45,424 LITERS)
Low-profile Ground Force water pulls convert CAT (or similar) tractor scrapers into specialized, high-volume water delivery platforms with the same quality and engineering that goes into every Ground Force tank.
Specialized
Solution
Water Pull tanks are purpose-built for Caterpillar tractor scrapers and compatible equipment — converting existing site machinery into high-volume water delivery platforms without compromising performance or OEM integration.
Lowest Center
of Gravity
The low-profile tank design keeps the center of gravity as close to the ground as possible — critical on a scraper chassis operating across grades and variable terrain. Structural integrity and vehicle stability don’t get traded off for capacity.
LOCAL DEALER
SUPPORT
Water Pulls are supported through the Ground Force global dealer network. Parts, service, and technical support are available wherever your site operates.
AVAILABLE MODELS
| MODEL | CLASS | CAPACITY GALLONS |
CAPACITY LITERS |
|---|---|---|---|
| 5W | CAT 613 | 5,000 G | 18,927 L |
| 6.5W | CAT 611/615 | 6,500 G | 24,600 L |
| 8W | CAT 621/623 | 8,000 G | 30,283 L |
| 10W | CAT 631/637 | 10,000 G | 37,854 L |
| 12W | CAT 651/657 | 12,000 G | 45,424 L |
GROUND FORCE WORLDWIDE
GLOBAL DEALER NETWORK
Our global dealer network isn’t just about selling equipment; it’s about cultivating lasting relationships, providing world-class service, and driving our goal to empower our customers worldwide.
